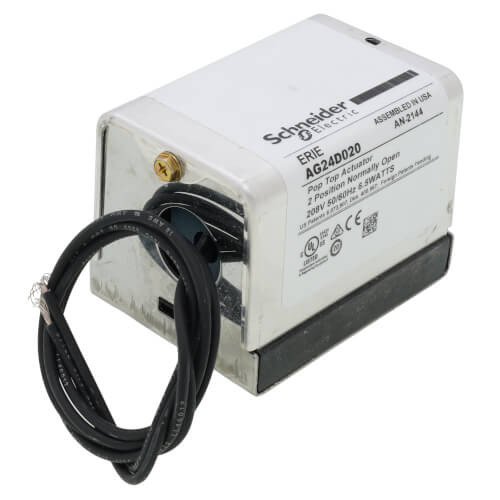

Schneider Electric Erie AG24D020 is a 208V normally open (N/O) two-position spring return actuator designed for high-temperature heating and cooling applications. Features synchronous motor drive, manual override lever, and mounts directly onto PopTop valve bodies without linkages or calibration. Rated for fluid temperatures up to 250°F (121°C) ambient and 169°F (76°C) with AH high close-off configuration. UL and CSA listed.
Schneider Electric AG24D020 208V Actuator Hi-Temp N/O
Schneider Electric (Erie)
$93.95
In Stock — 10+ available
- Fits brands
- Schneider Electric, Erie
(No reviews yet)
Write a Review
Write a Review
Schneider Electric (Erie)
Schneider Electric AG24D020 208V Actuator Hi-Temp N/O
- SKU:
- AG24D020
- Product Type:
- Two-Position Spring Return Actuator
- Subcategory:
- Zone Valve Actuator
- Application:
- Residential/Commercial
- System Type:
- Split System, Heat Pump, Boiler, Air Handler, Fan Coil
- Installation Type:
- OEM Replacement
- Voltage:
- 208V AC
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Mounting Type:
- Direct Mount (PopTop)
- Temperature Range:
- 32°F to 250°F (0°C to 121°C) fluid; -40°F to 160°F (-40°C to 71°C) storage
- Pressure Rating:
- 300 PSI static
- Connection Type:
- Direct Mount to PopTop Valve Body
- Connection / Joint:
- NPT, Sweat, Inverted Flare
- Material:
- Stainless steel base plate, aluminum cover
- Control Type:
- Non-Programmable
- Switch Action:
- SPST
