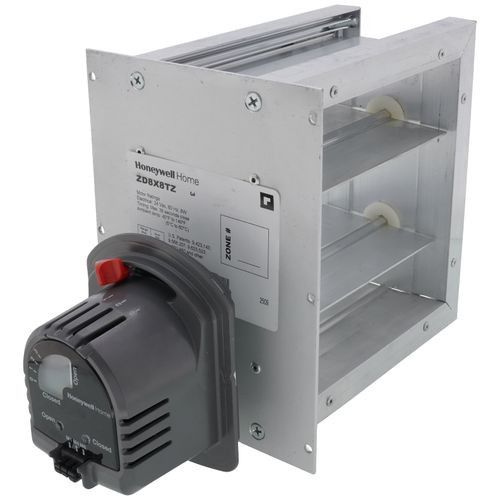

Resideo ZD8X8TZ 24V Rectangular Damper 8x8 Inch

Resideo ZD8X8TZ 24V Rectangular Damper 8x8 Inch

Resideo

$191.95

In Stock

(No reviews yet) Write a Review
SKU:
ZD8X8TZ
Product Type:
Zone Damper
Subcategory:
Rectangular Damper
Application:
Residential/Commercial
System Type:
Split System, Heat Pump, Package Unit, Furnace, Air Handler
Installation Type:
OEM Replacement
Voltage:
24V AC
Voltage Class:
Low Voltage
Mounting Type:
Direct Drive
Temperature Range:
40°F to 140°F
Pressure Rating:
1 in. wc
Material:
Extruded Aluminum
Control Type:
Non-Programmable
Adding to cart… The item has been added

Flat-rate shipping. The same price to anywhere in the 50 states.

Ships same or next business day · UPS Ground, typically 1–5 business days.

Shipping details

The Resideo ZD8X8TZ is a 24V AC power-close, spring-return rectangular damper designed for HVAC zoning systems. This 8x8-inch damper features an integrated M847D-ZONE actuator motor, extruded aluminum frame and blades, and adjustable range stops for precise zone control. Rated to 1 in. wc with less than 1% leakage at 0.5 in. wc, it delivers quiet operation and energy-efficient performance. Backed by a 5-year warranty.
!
