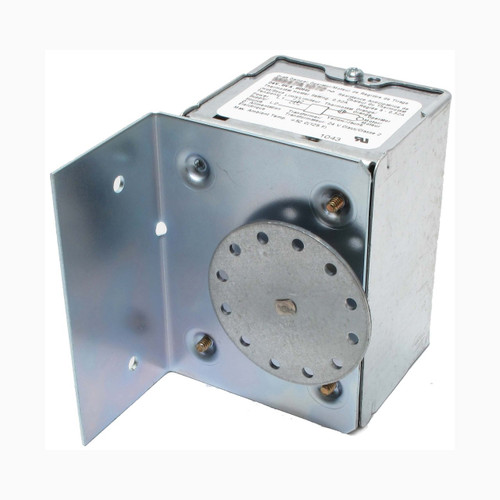

Resideo M847A1072 Draft Damper Actuator 24V Spring Return

Name: Resideo M847A1072 Draft Damper Actuator 24V Spring Return
Brand: Resideo
SKU: M847A1072
Price: 155.95 USD
Availability: InStock

Resideo

$155.95

In Stock

Write a Review

SKU:: M847A1072
UPC:

in stock

Quantity:

Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Flat-rate shipping. The same price to anywhere in the 50 states.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Shipping details

Specifications

Product Type:: Draft Damper Actuator
Subcategory:: Two-Position Spring Return
Application:: Residential/Commercial
System Type:: Furnace, Boiler
Installation Type:: OEM Replacement
Voltage:: 24V AC
Voltage Class:: Low Voltage
Phase:: Single Phase
Amperage:: 0.32A
Mounting Type:: Foot Mount, Direct Coupled
Temperature Range:: 40°F to 125°F
Material:: Zinc Plated Steel
Control Type:: Non-Programmable
Switch Action:: SPST
Ambient Temperature:: 40°F to 125°F

Description

Two-position draft damper actuator for solid fuel furnaces and boilers. 24VAC spring return design with foot-mounted direct-coupled housing. Includes linkage arm and chain for versatile installation. Compatible with standard two-wire 24V thermostats and low-voltage controllers.
