Marathon 0.75 HP variable speed motor with 3-phase 230/460V dual-voltage input, 1725 RPM, 56C frame, and TEFC enclosure. Features IRIS® inverter-rated insulation system (NEMA MG1 Part 31), double-shielded ball bearings, and constant torque operation from 0 to base speed on vector drive. UL/CSA/CE certified for reliable industrial and HVAC applications.

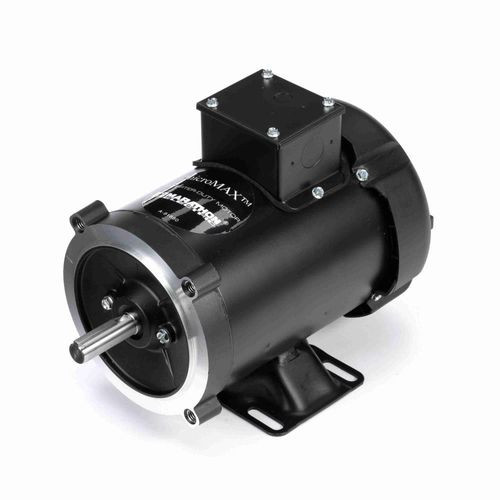

Regal Rexnord Y362 Variable Speed Motor 0.75 HP 3-Phase 230/460V
Regal Rexnord - Marathon
$430.95
In Stock — 10+ available
- SKU:
- Y362
Specifications
- Product Type:
- Variable Speed Motor
- Subcategory:
- AC Induction Motor
- Application:
- Commercial/Industrial
- System Type:
- HVAC, Industrial Equipment, Pump Drives
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 2.8/1.4 A
- Horsepower:
- 0.75 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Frame Size:
- 56C Frame
- Fuel Type:
- Electric
- Mounting Type:
- Rigid Base
- Motor Type:
- Three Phase
- Power (kW):
- 0.56 kW
- Service Factor:
- 1.0
- KVA Code:
- L
- Power Factor:
- 70.5%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Inverter Only
- Inverter Duty:
- Constant 20:1
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Nema 56
- Overall Length:
- 11 3/16"
- Frame Length:
- 6 1/4"
- Mounting Orientation:
- Horizontal
- IP Rating:
- IP43
- Material:
- Rolled Steel
- Country of Origin:
- Mexico
- UPC:
- 722856024237
- Lifecycle Status:
- Active
