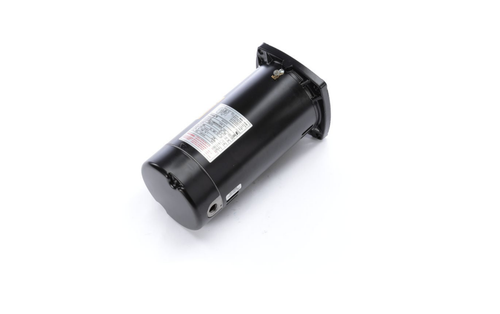

Regal Rexnord SQ1072 Pool Pump Motor 3/4 HP 230/115V
Regal Rexnord - Century Motors
$223.95
In Stock — 10+ available
- SKU:
- SQ1072
Specifications
- Product Type:
- Pool Pump Motor
- Application:
- Residential
- System Type:
- Pool Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 230/115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 7.6/15.3 A
- Horsepower:
- 3/4 HP
- RPM:
- 3450 RPM
- Speeds:
- 1
- Frame Size:
- 48Y Frame
- Mounting Type:
- Round
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Motor Type:
- Capacitor Start
- Power (kW):
- 0.56 kW
- Service Factor:
- 1.65
- Duty:
- Continuous
- Ambient Temperature:
- 50°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Shaft Type:
- 1/2 Thread
- Overall Length:
- 12.82"
- Frame Length:
- 8 15/16"
- Mounting Orientation:
- Horizontal
- Country of Origin:
- Thailand
- UPC:
- 786674031143
- Lifecycle Status:
- Discontinued by manufacturer
Century 3/4 HP single-phase pool pump motor with dual-voltage 230/115V operation and 3450 RPM speed. Features capacitor-start design, open drip-proof enclosure, sealed ball bearings, and 1.65 service factor for reliable pool circulation.
