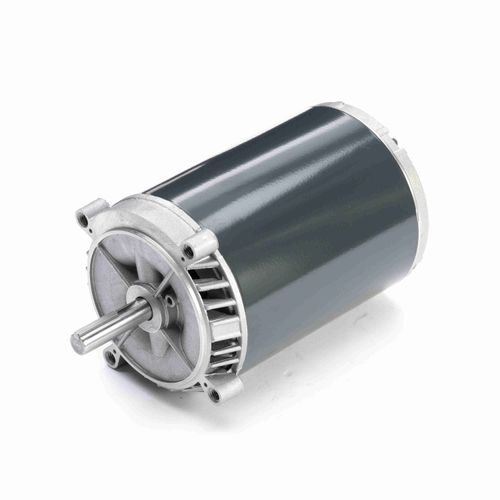

Regal Rexnord Marathon H209 Motor 1/6 HP 115V 1140 RPM

Regal Rexnord - Marathon

$297.95

In Stock — 10+ available

Write a Review
SKU:
H209
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $28.35 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Fan and Blower Motor
Subcategory:
Blower Motor
Application:
Residential/Commercial
System Type:
Furnace, Air Handler, Package Unit
Installation Type:
OEM Replacement
Voltage:
115V
Voltage Class:
Line Voltage
Phase:
Single Phase
Horsepower:
1/6 HP
RPM:
1140 RPM
Speeds:
1
Frame Size:
56CZ Frame
Motor Type:
Split Phase
Power (kW):
0.13 kW
Service Factor:
1.35
KVA Code:
P
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6203, opposite end 6203
Shaft Type:
Special Extension
Mounting Orientation:
Any
Material:
Rolled Steel
Certifications:
UL Recognized, CSA
Country of Origin:
Mexico
UPC:
722856041258
Lifecycle Status:
Active
Marathon H209 fan and blower motor for HVAC systems. 1/6 HP, single-phase, 115V, 1140 RPM, open drip-proof (ODP) enclosure. Suitable for driving fans, blowers, and air-moving equipment in residential and light commercial HVAC applications.
