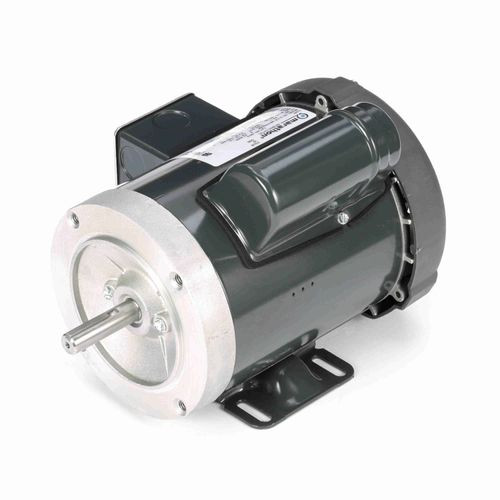

Regal Rexnord Marathon G570 General Purpose Motor 1/3 HP

Regal Rexnord - Marathon

$347.95

In Stock — 10+ available

Write a Review
SKU:
G570
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $33.30 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
General Purpose Motor
Subcategory:
Single-Phase AC Motor
Application:
Residential/Commercial
System Type:
HVAC, Fan, Blower, Pump
Installation Type:
OEM Replacement
Voltage:
115/208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
6.6/3.1-3.3 A
Horsepower:
1/3 HP
RPM:
1725 RPM
Speeds:
1
Frame Size:
56C Frame
Mounting Type:
C-Face Mount
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
Capacitor Start
Power (kW):
0.25 kW
Service Factor:
1.15
KVA Code:
N
NEMA Design:
N
Power Factor:
60%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6203, opposite end 6203
Shaft Type:
Nema 56
Overall Length:
11 13/16"
Frame Length:
6 9/16"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP43
Country of Origin:
Mexico
UPC:
722856009456
Lifecycle Status:
Active
Marathon General Purpose Motor rated 1/3 HP, single-phase, 115/208-230V, 1800 RPM, 56C frame TEFC enclosure. Capacitor start design with permanently lubricated sealed bearings and heavy-duty rolled steel construction for continuous duty applications in HVAC systems, fans, blowers, and auxiliary equipment. UL recognized and CSA certified.
