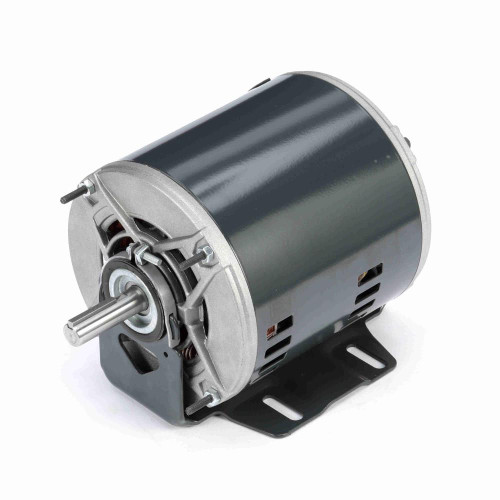

Regal Rexnord K546 Fan Blower Motor 1/2 HP 3-Phase 460V

Regal Rexnord - Marathon

$517.95

In Stock

Write a Review
SKU:
K546
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $30.00 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Fan and Blower Motor
Subcategory:
Three-Phase AC Motor
Application:
Residential/Commercial
System Type:
HVAC/R Systems, Air Handler, Package Unit, Rooftop Unit
Installation Type:
OEM Replacement
Voltage:
460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
1.1/0.6 A
Horsepower:
1/2-1/6 HP
RPM:
1725/1140 RPM
Speeds:
2
Frame Size:
56 Frame
Mounting Type:
Vertical/Horizontal
Temperature Range:
40°C to 70°C
Fuel Type:
Electric
Motor Type:
Capacitor Start / Capacitor Run
Power (kW):
0.37 kW
Service Factor:
1.25
KVA Code:
M
NEMA Design:
B
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6203, opposite end 6203
Shaft Type:
Nema 56
Mounting Orientation:
Any
Material:
Rolled Steel
Country of Origin:
Mexico
UPC:
722856041098
Lifecycle Status:
Active
Regal Rexnord - Marathon fan and blower motor rated 1/2 HP, 3-phase, 460V, 60 Hz with dual-speed operation (1725/1140 RPM). Features permanently lubricated double-sealed bearings, automatic reset thermal protector, and drip-proof enclosure suitable for HVAC/R applications. Vertical or horizontal mounting flexibility with 1.25 service factor.
