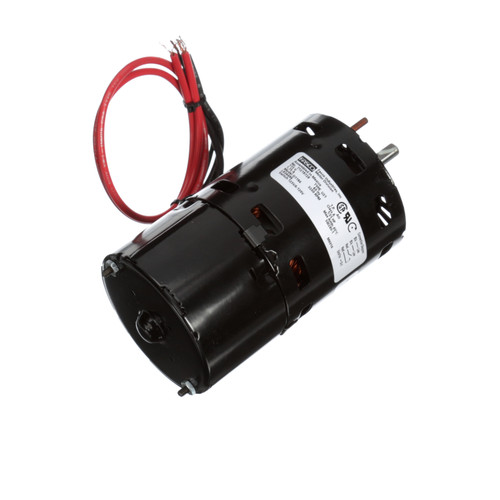

Regal Rexnord Fasco D1194 Draft Inducer Motor 1/25 HP 115V

Regal Rexnord - Fasco

$189.95

In Stock — 10+ available

Write a Review
SKU:
D1194
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $23.95 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Draft Inducer Blower Motor
Subcategory:
Furnace/Boiler Venting
Application:
Residential/Commercial
System Type:
Furnace, Boiler
Installation Type:
OEM Replacement
Voltage:
115V
Voltage Class:
Line Voltage
Phase:
Single Phase
Horsepower:
1/25 HP
RPM:
3200 RPM
Speeds:
1
Mounting Type:
Extended Studs
Frame Size:
3.3 Frame
Motor Type:
Shaded Pole
Power (kW):
0.03 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Shaft Type:
Flat
Overall Length:
7.11"
Frame Length:
3.18"
Material:
Steel
Certifications:
UL Recognized, CSA
Country of Origin:
Mexico
UPC:
815585028222
Lifecycle Status:
Active
Regal Rexnord Fasco D1194 draft inducer blower motor for furnaces and boilers. Generates airflow to safely remove combustion gases from heating systems. 1/25 HP, 3200 RPM, 115V single-phase, open air-over enclosure with clockwise rotation. Direct-drive design for reliable venting performance.
