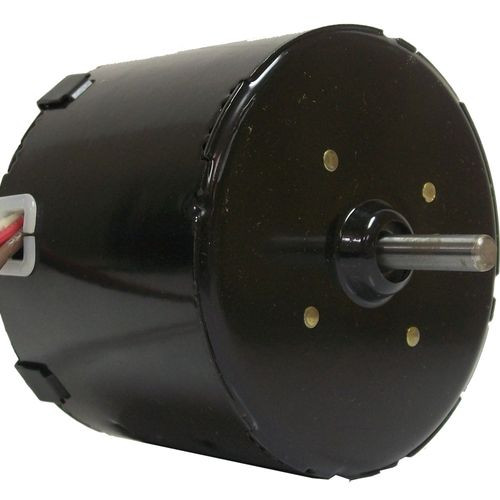

Regal Rexnord D534 FASCO Motor 1/35-1/110 HP 115V 1500 RPM

Regal Rexnord - Fasco

$139.95

In Stock — 10+ available

Write a Review
SKU:
D534
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $17.95 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
AC Motor
Subcategory:
HVAC/R Replacement Motor
Application:
Residential/Commercial
System Type:
HVAC/R Systems, Fan and Blower
Installation Type:
OEM Replacement
Voltage:
115V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
1.50/0.50 A
Horsepower:
1/35-1/110 HP
RPM:
1500 RPM
Speeds:
2
Frame Size:
3.3 Frame
Mounting Type:
Extended Studs Lead End
Fuel Type:
Electric
Motor Type:
Shaded Pole
Power (kW):
0.02 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Sleeve / Sleeve
Shaft Type:
Flat
Overall Length:
4 1/8"
Frame Length:
2.32"
Material:
Steel
Country of Origin:
Mexico
UPC:
818508020938
Lifecycle Status:
Active
FASCO OEM replacement motor for HVAC/R applications. 1/35–1/110 HP, single-phase, 115V, 1500 RPM with 2-speed capability. Totally enclosed air-over (TEAO) enclosure with thermally protected shaded-pole design. 3.3" diameter, 1/4" shaft with flat, 8" leads.
