1/4 HP direct-drive furnace blower motor, 277V single-phase 60Hz, 1075 RPM with 3-speed operation. 48 Frame, open enclosure, reversible rotation, thermally protected. Includes 5 MFD 370V capacitor.

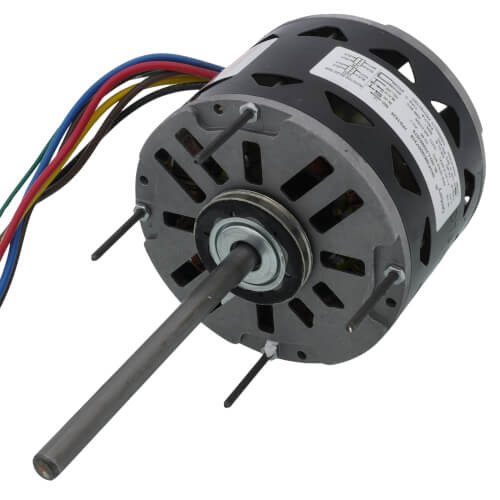

Regal Rexnord Century 7FD1026 Blower Motor 1/4 HP 277V
Regal Rexnord - Century Motors
$198.95
In Stock — 10+ available
- SKU:
- 7FD1026
Specifications
- Product Type:
- Blower Motor
- Subcategory:
- Furnace Blower
- Application:
- Residential
- System Type:
- Furnace, Air Handler
- Installation Type:
- OEM Replacement
- Voltage:
- 277V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 1.3 A
- Horsepower:
- 1/4 HP
- RPM:
- 1075 RPM
- Speeds:
- 3
- MFD:
- 5 MFD 370V
- Frame Size:
- 48Y Frame
- Mounting Type:
- Resilient Ring/Extended Studs, Belly Band, Stud Mount
- Material:
- Rolled Steel
- Motor Type:
- PSC
- Power (kW):
- 0.19 kW
- Service Factor:
- 1.0
- Duty:
- Air Over
- Ambient Temperature:
- 50°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 5 MFD 370V
- Bearings:
- Ball / Ball
- Shaft Type:
- Flat
- Overall Length:
- 10.8"
- Frame Length:
- 3 1/4"
- Mounting Orientation:
- Horizontal
- Country of Origin:
- India
- UPC:
- 786674010902
- Lifecycle Status:
- Active
