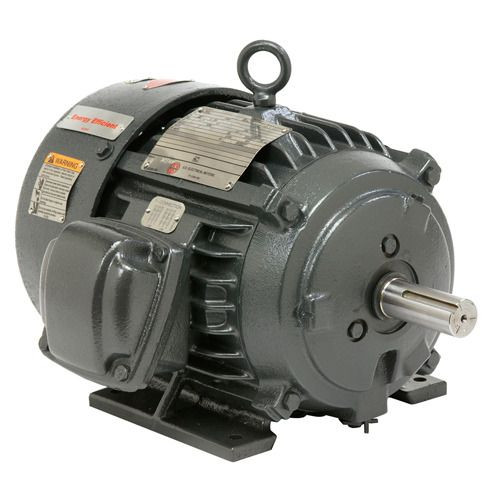

Nidec-US Motors 15 HP three-phase explosion-proof motor rated for hazardous locations. TEFC enclosure, 1775 RPM, dual-voltage 230/460V operation. Built to Class I, Division 1 standards for safe operation in flammable gas and vapor environments.
Specifications
- Product Type:
- Explosion Proof Motor
- Application:
- Industrial
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 15 HP
- RPM:
- 1775 RPM
- Speeds:
- 1
- Frame Size:
- 254
- Mounting Type:
- Rigid Base
- Motor Type:
- Three Phase
- Power (kW):
- 11.2 kW
- Service Factor:
- 1.0
- KVA Code:
- G
- Locked Rotor Torque:
- 251% of full-load torque
- Breakdown Torque:
- 244% of full-load torque
- Ambient Temperature:
- 40°C
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6309-J/C3, opposite end 6207-J/C3
- Shaft Type:
- Single
- Material:
- Cast Iron
