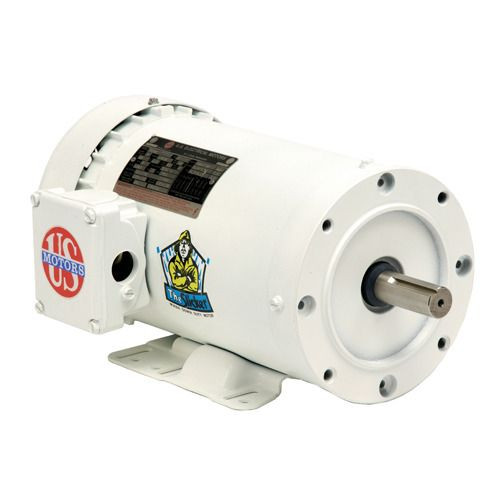

Nidec WD12S2AC 0.5 HP 3-Phase Motor 1725 RPM 230/460V

Nidec-US Motors

$450.95

In Stock

Write a Review
SKU:
WD12S2AC
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $32.20 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Three-Phase Electric Motor
Subcategory:
Industrial/Commercial HVAC Motor
Application:
Commercial/Industrial
System Type:
Package Unit, Rooftop Unit, Air Handler
Installation Type:
OEM Replacement
Voltage:
230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Horsepower:
1/2 HP
RPM:
1725 RPM
Speeds:
1
Fuel Type:
Electric
Material:
Epoxy
Frame Size:
56
Mounting Type:
C-Face / Footed
Motor Type:
Three Phase
Power (kW):
0.4 kW
Service Factor:
1.15
Service Factor Amps:
1.9/1.0A
KVA Code:
V
Locked Rotor Torque:
82.36 oz-ft
Breakdown Torque:
115.6 oz-ft
Ambient Temperature:
40°C
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6203, opposite end 6203
Shaft Type:
Single
Nidec-US Motors 0.5 HP three-phase electric motor rated for 230/460V operation at 1725 RPM. TENV (Totally Enclosed Non-Ventilated) enclosure with white epoxy finish provides durability in industrial and commercial HVAC applications. OEM replacement for legacy US Motors equipment.
