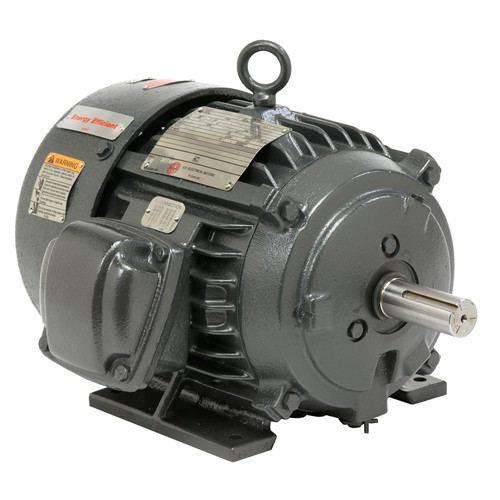

Nidec X32P2B is an explosion proof motor rated 1-1/2 HP at 1760 RPM, three-phase 60 Hz. It has a 145 frame and a TEFC enclosure. Dual rotation; Class F insulation; 86.5% efficiency.
Specifications
- Voltage:
- 230/460V
- Phase:
- Three Phase
- Horsepower:
- 1-1/2 HP
- RPM:
- 1760 RPM
- Speeds:
- 1
- Frame Size:
- 145
- Product Type:
- Explosion Proof Motor
- Motor Type:
- Three Phase
- Power (kW):
- 1.1 kW
- Service Factor:
- 1.0
- KVA Code:
- L
- Locked Rotor Torque:
- 341% of full-load torque
- Breakdown Torque:
- 447% of full-load torque
- Ambient Temperature:
- 40°C
- Bearing Sizes:
- shaft end 6205-2Z-J/C3, opposite end 6203-2Z-J/C3
