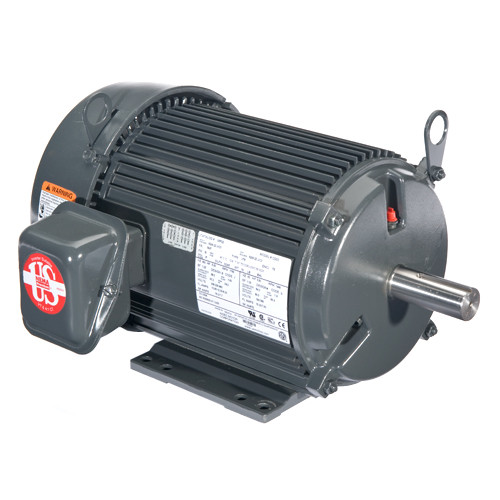

Nidec-US Motors 5 HP three-phase general-purpose motor with 254T TEFC enclosure, rated 208-230/460V, 885 RPM base speed. Features Class F insulation, rigid foot mount, reversible rotation, and dual-voltage capability for industrial fans, blowers, compressors, and pumps. 1.25 service factor; 1 year manufacturer warranty.
Nidec-US Motors U5P4D 5 HP General Purpose Motor 254T TEFC
Nidec-US Motors
$1,856.95
Write a Review
Write a Review
Nidec-US Motors
Nidec-US Motors U5P4D 5 HP General Purpose Motor 254T TEFC
- SKU:
- U5P4D
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Three-Phase AC Motor
- Application:
- Commercial/Industrial
- System Type:
- Fans, Blowers, Compressors, Pumps, Direct-Drive Equipment
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 15.9-14.8/7.4 A
- Horsepower:
- 5 HP
- RPM:
- 885 RPM
- Speeds:
- 1
- Frame Size:
- 254T Frame
- Mounting Type:
- Rigid Foot Mount
- Fuel Type:
- Electric
- Material:
- Aluminum Frame
