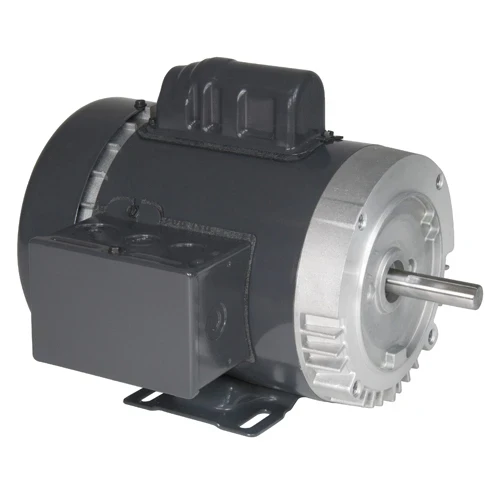

Nidec US Motors T2C1J14C 2 HP Motor 115/208-230V TEFC

Nidec-US Motors

$790.95

In Stock

Write a Review
SKU:
T2C1J14C
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $35.50 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
General Purpose Motor
Subcategory:
Capacitor Start-Run Motor
Application:
Commercial/Industrial
System Type:
Pump, Compressor, Conveyor, Blower
Installation Type:
OEM Replacement
Voltage:
115/208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
19.5/10.8-9.7 A
Horsepower:
2 HP
RPM:
3450 RPM
Speeds:
1
Frame Size:
145
Mounting Type:
C-Face / Base Mount
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
Capacitor Start
Power (kW):
1.5 kW
Service Factor:
1.15
KVA Code:
H
Locked Rotor Torque:
111.1 oz-ft
Breakdown Torque:
131.5 oz-ft
Ambient Temperature:
40°C
Start Capacitor:
594 MFD
Bearing Sizes:
shaft end 6203, opposite end 6205
2 HP general-purpose motor with capacitor-start, capacitor-run design for pumps, compressors, conveyors, and blowers. 115/208-230V single-phase, 3450 RPM base speed, TEFC enclosure, 145TC frame with C-face/base mount. Class B insulation, 1.15 service factor, continuous duty rated.
