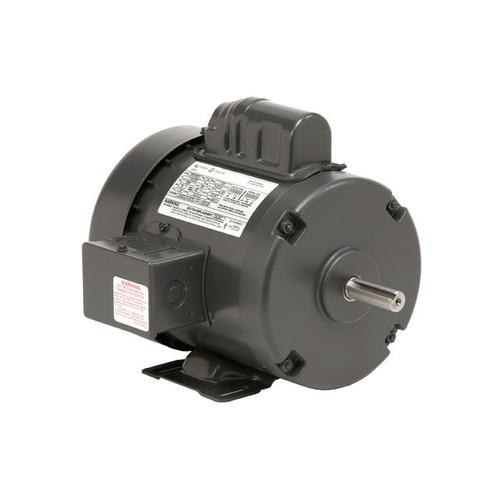

Nidec-US Motors T1CA2JH 1 HP Motor 115/208-230V 1725 RPM

Nidec-US Motors

$600.95

In Stock

Write a Review
SKU:
T1CA2JH
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $35.50 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
General Purpose Motor
Subcategory:
Single-Phase Capacitor-Start
Application:
Residential/Commercial
System Type:
Air Compressor, Pump, Blower, Conveyor, General Industrial Equipment
Installation Type:
OEM Replacement
Voltage:
115/208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
14.0/6.9-7.0 A
Horsepower:
1 HP
RPM:
1725 RPM
Speeds:
1
Frame Size:
56
Mounting Type:
Rigid Base
Temperature Range:
40°C Ambient
Fuel Type:
Electric
Motor Type:
Capacitor Start
Power (kW):
0.8 kW
Service Factor:
1.15
KVA Code:
K
Locked Rotor Torque:
196.4 oz-ft
Breakdown Torque:
141.8 oz-ft
Ambient Temperature:
40°C
Start Capacitor:
590 MFD
Bearing Sizes:
shaft end 6203, opposite end 6203
1 HP general-purpose motor with capacitor-start induction-run design, rated for 115/208-230V single-phase operation at 1725 RPM. TEFC enclosure with double-shielded ball bearings, Class B insulation, and reversible rotation capability. Suitable for air compressors, pumps, conveyors, blowers, and industrial equipment.
