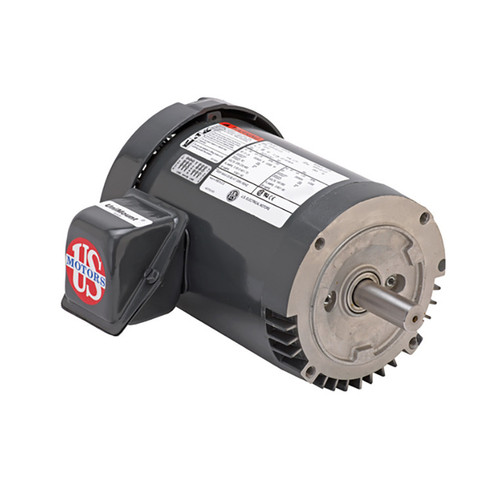

Nidec-US Motors T13S1ACR General Purpose Motor 1/3 HP 3450 RPM

Nidec-US Motors

$232.95

In Stock

Write a Review
SKU:
T13S1ACR
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $35.50 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
General Purpose Motor
Application:
Residential/Commercial
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Horsepower:
1/3 HP
RPM:
3450 RPM
Speeds:
1
Frame Size:
56
Fuel Type:
Electric
Motor Type:
Three Phase
Power (kW):
0.3 kW
Service Factor:
1.15
KVA Code:
K
Locked Rotor Torque:
31.39 oz-ft
Breakdown Torque:
54.69 oz-ft
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6203, opposite end 6203
Three-phase general-purpose motor rated 1/3 HP at 3450 RPM. Designed for 208-230/460V 60 Hz operation with TEFC enclosure. Suitable for various HVAC and industrial applications requiring reliable, durable motor performance.
