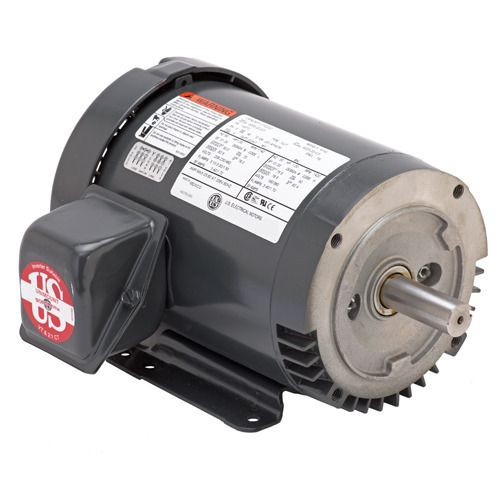

Nidec US Motors S10P1AC 10 HP General Purpose Motor 208-230/460V

Nidec-US Motors

$944.95
Write a Review
SKU:
S10P1AC

Sold by freight quote

Tell us where it’s going and we’ll come back with a price and freight cost.

Request price & availability

We reply within one business day — quotes@globalpartsupply.com

Specifications

Product Type:
General Purpose Motor
Subcategory:
Three-Phase AC Motor
Application:
Commercial/Industrial
System Type:
Pump, Fan, Compressor, Belt Drive, Direct Drive
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
26.5-23.5/11.7 A
Horsepower:
10 HP
RPM:
3522 RPM
Speeds:
1
Frame Size:
215TC Frame
Mounting Type:
C-Face / Foot Mount
Fuel Type:
Electric
Material:
Steel
Motor Type:
Three Phase
Service Factor:
1.15
Shaft Type:
Single
C Dimension:
19.4"
Power (kW):
7.5 kW
KVA Code:
G
Locked Rotor Torque:
153% of full-load torque
Breakdown Torque:
266% of full-load torque
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6208-2Z-J/C3, opposite end 6205-2Z-J/C3
Nidec US Motors 10 HP three-phase general-purpose motor rated 208-230/460V, 60 Hz, 3522 RPM base speed with 215TC NEMA frame. TEFC (totally enclosed fan-cooled) enclosure suitable for pumps, fans, compressors, and belt-drive or direct-drive applications. Includes 1-year manufacturer warranty.
