US-Nidec NAL1006 permanent-split capacitor (PSC) fan and blower motor rated 1/8 HP, 1075 RPM, 115V, 2.2A with 3-speed capability. Features ODP enclosure, CCWLE rotation, double shaft (9.2" x 1/2" x 8.7"), 5.6" diameter, and stud or hub mounting. Includes adjustable hub length adapter and all-angle thrust bearings for continuous duty air-over applications. Requires 5 MFD 370V capacitor.

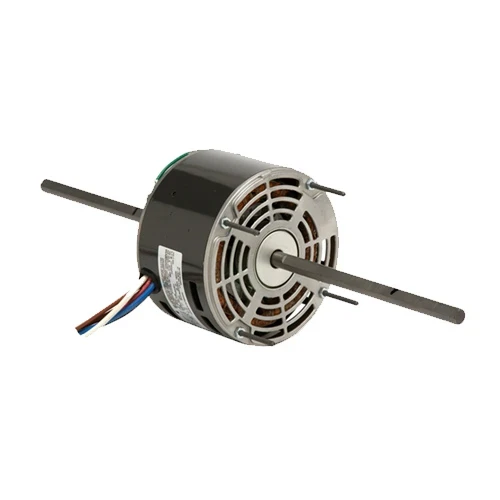

Nidec-US Motors NAL1006 Fan Blower Motor 1/8 HP 115V
Nidec-US Motors
$212.95
In Stock
Write a Review
Write a Review
Nidec-US Motors
Nidec-US Motors NAL1006 Fan Blower Motor 1/8 HP 115V
- SKU:
- NAL1006
Specifications
- Product Type:
- Fan Blower Motor
- Subcategory:
- Permanent-Split Capacitor (PSC)
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Package Unit, Split System
- Installation Type:
- OEM Replacement
- Voltage:
- 115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 2.2A
- Horsepower:
- 1/8 HP
- RPM:
- 1075 RPM
- Speeds:
- 3
- MFD:
- 5 MFD 370V
- Frame Size:
- 48 Frame
- Mounting Type:
- Stud Mount, Hub Mount
- Motor Type:
- PSC
- Power (kW):
- 0.1 kW
- Service Factor:
- 1.0
- Service Factor Amps:
- 2.2A
- Locked Rotor Torque:
- 4.483 oz-ft
- Breakdown Torque:
- 18.33 oz-ft
- Ambient Temperature:
- 40°C
- Bearings:
- Sleeve / Sleeve
- Wheel Diameter:
- 5.6"
- Hub Type:
- Adjustable Hub Length Adapter
- Max RPM:
- 1075 RPM
- Fuel Type:
- Electric
