Nidec US Motors 3/4 HP capacitor-start jet pump motor rated for 115/230V single-phase 60 Hz operation at 3450 RPM. Features NEMA 48Y frame, open drip-proof (ODP) enclosure, 1/2" threaded stainless steel shaft, ball bearings, and auto overload thermal protection. Suitable for residential and light commercial jet pump applications.

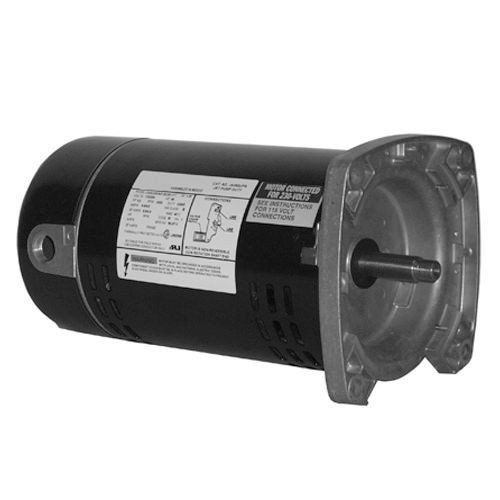

Nidec US Motors JS0752-2V 3/4 HP Jet Pump Motor 115/230V
Nidec-US Motors
$239.95
In Stock
- SKU:
- JS0752-2V
Specifications
- Product Type:
- Jet Pump Motor
- Subcategory:
- Single-Phase Capacitor-Start
- Application:
- Residential/Commercial
- System Type:
- Jet Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 115/230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 11.6/5.8A
- Horsepower:
- 3/4 HP
- RPM:
- 3450 RPM
- Speeds:
- 1
- Frame Size:
- 48
- Mounting Type:
- Square Flange Mount
- Fuel Type:
- Electric
- Material:
- Stainless Steel (shaft)
- Motor Type:
- Capacitor Start
- Power (kW):
- 0.6 kW
- Service Factor:
- 1.65
- Service Factor Amps:
- 15.2/7.6A
- KVA Code:
- J
- Ambient Temperature:
- 40°C
- Start Capacitor:
- 198.45 MFD
- Bearing Sizes:
- shaft end 6203, opposite end 6203
