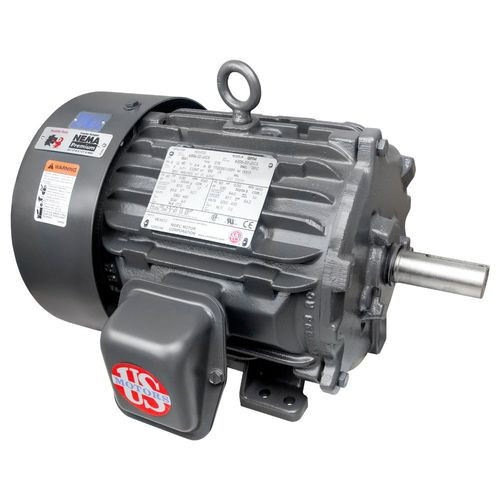

Nidec-US Motors HD15P2H 15 HP Motor 254T 200-208V 3-Phase

Nidec-US Motors

$1,120.95
Write a Review
SKU:
HD15P2H

Sold by freight quote

Tell us where it’s going and we’ll come back with a price and freight cost.

Request price & availability

We reply within one business day — quotes@globalpartsupply.com

Specifications

Product Type:
General Purpose Motor
Subcategory:
Three-Phase Industrial Motor
Application:
Industrial
System Type:
Pump, Compressor, Fan, Blower, Material Handling
Installation Type:
OEM Replacement
Voltage:
200-208V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
40.0-41.0A
Horsepower:
15 HP
RPM:
1775/1770 RPM
Speeds:
1
Frame Size:
254
Mounting Type:
Horizontal Foot Mount
Fuel Type:
Electric
Material:
Cast Iron
Motor Type:
Three Phase
Power (kW):
11.2 kW
Service Factor:
1.15
Service Factor Amps:
47/46A
KVA Code:
G
Locked Rotor Torque:
272% of full-load torque
Breakdown Torque:
260% of full-load torque
Duty:
Hostile Duty
Ambient Temperature:
40°C
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6309-2Z-J/C3, opposite end 6209-2Z-J/C3
Shaft Type:
Single
C Dimension:
24.9"
Nidec-US Motors HD15P2H is a 15 HP, 3-phase general-purpose motor rated for 200-208V at 60 Hz with 1775 RPM base speed. Features TEFC (Totally Enclosed Fan Cooled) enclosure, cast-iron frame, Class F insulation, and 1.15 service factor for continuous duty in harsh industrial environments. NEMA 254T frame with horizontal foot mount and reversible rotation.
