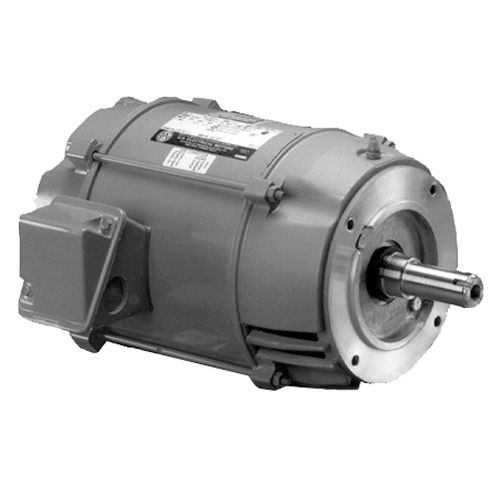

Nidec US Motors DJ3P2DU 3 HP Close Coupled Pump Motor 1770 RPM

Nidec-US Motors

$644.95

In Stock

Write a Review
SKU:
DJ3P2DU
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $45.40 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Close Coupled Pump Motor
Subcategory:
Pump Motor
Application:
Commercial
System Type:
Pump
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
8.3-7.7/3.8 A
Horsepower:
3 HP
RPM:
1770 RPM
Speeds:
1
Frame Size:
182
Mounting Type:
Footed
Fuel Type:
Electric
Material:
Rolled Steel Frame, Aluminum End Shields
Motor Type:
Three Phase
Power (kW):
2.2 kW
Service Factor:
1.15
KVA Code:
J
Locked Rotor Torque:
222% of full-load torque
Breakdown Torque:
354% of full-load torque
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6207-2Z-J/C3, opposite end 6206-2Z-J/C3
Nidec US Motors 3 HP close coupled pump motor designed for centrifugal pumps with direct shaft-mounted impellers. Three-phase, 208-230/460V, 1770 RPM, ODP enclosure with Class F insulation and premium efficiency. Suitable for damp, dusty, or dirty environments with oversized ball bearings and regreasable design.
