1.5 HP three-phase general-purpose motor rated 208-230/460V, 1800 RPM. NEMA 145T frame with 7/8" keyed shaft, open drip-proof (ODP) enclosure, and ball bearings. Reversible with rigid base mount and Class F insulation. Premium efficient, continuous duty, 1.15 service factor. Suitable for pump drives, compressors, and industrial machinery.

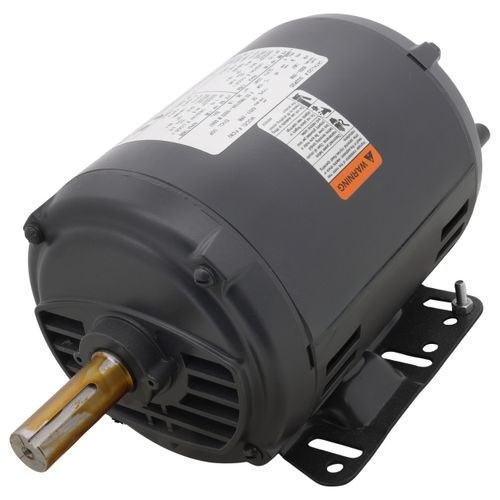

Nidec-US Motors D32P2D Motor 1.5 HP 230/460V 1800 RPM
Nidec-US Motors
$341.95
In Stock — 10+ available
Write a Review
Write a Review
Nidec-US Motors
Nidec-US Motors D32P2D Motor 1.5 HP 230/460V 1800 RPM
- SKU:
- D32P2D
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Industrial Electric Motor
- Application:
- Industrial
- System Type:
- Pump, Fan, Compressor, Material Handling
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 4.2/2.1 A
- Horsepower:
- 1.5 HP
- RPM:
- 1750 RPM
- Speeds:
- 1
- Frame Size:
- 145
- Mounting Type:
- Rigid Base Mount
- Temperature Range:
- 40°C Ambient
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Motor Type:
- Three Phase
- Power (kW):
- 1.1 kW
- Service Factor:
- 1.15
- Service Factor Amps:
- 4.6/2.3A
- KVA Code:
- L
- Locked Rotor Torque:
- 384% of full-load torque
- Breakdown Torque:
- 476% of full-load torque
- Ambient Temperature:
- 40°C
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6205-2Z-J/C3, opposite end 6203-2RS
- Shaft Type:
- Single
