2 HP single-phase general-purpose motor rated 115/230V, 60 Hz, 1725 RPM base speed. NEMA 56H frame with open drip-proof (ODP) enclosure, rigid base mount, and ball bearings. Suitable for continuous-duty applications including fans, pumps, and compressors. Service factor 1.15; automatic overload protection.

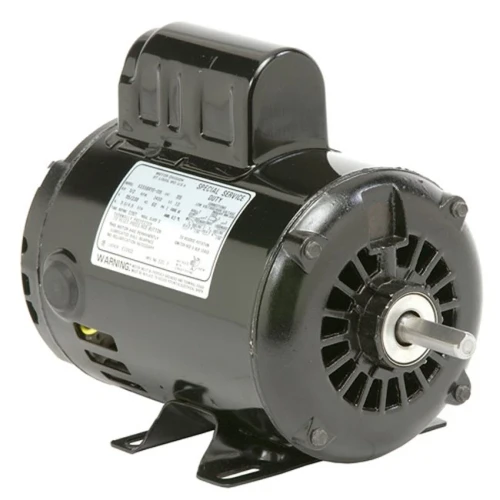

Nidec-US Motors D2CPA2PH 2 HP General Purpose Motor 115/230V
Nidec-US Motors
$1,002.95
In Stock
- SKU:
- D2CPA2PH
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Single-Phase AC Motor
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 115/230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 17.0/8.5 A
- Horsepower:
- 2 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Frame Size:
- 56
- Mounting Type:
- Rigid Base Mount
- Fuel Type:
- Electric
- Motor Type:
- Capacitor Start
- Power (kW):
- 1.5 kW
- Service Factor:
- 1.15
- Service Factor Amps:
- 19.6/9.8A
- KVA Code:
- J
- Locked Rotor Torque:
- 342.3 oz-ft
- Breakdown Torque:
- 273.7 oz-ft
- Ambient Temperature:
- 40°C
- Start Capacitor:
- 649 MFD
- Bearing Sizes:
- shaft end 6203, opposite end 6203
