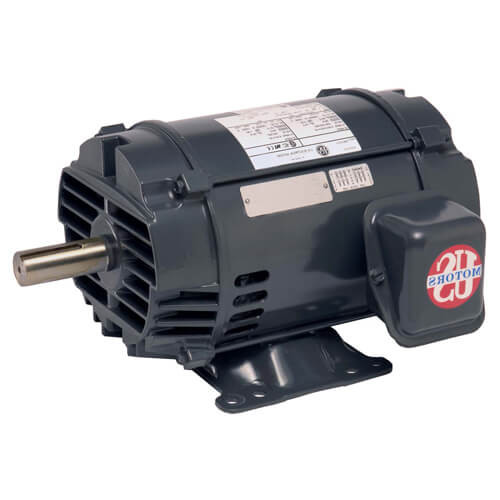

Nidec-US Motors 10 HP three-phase general-purpose motor rated 208-230/460V, 1200 RPM. ODP (Open Drip-Proof) enclosure with 256T frame. Suitable for industrial and commercial HVAC applications including compressors, pumps, and fan drives.
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Three-Phase Industrial Motor
- Application:
- Commercial/Industrial
- System Type:
- Compressor, Pump, Fan Drive
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 10 HP
- RPM:
- 1185 RPM
- Speeds:
- 1
- Frame Size:
- 256
- Mounting Type:
- Horizontal / Footed
- Motor Type:
- Three Phase
- Power (kW):
- 7.5 kW
- Service Factor:
- 1.15
- KVA Code:
- G
- Locked Rotor Torque:
- 210% of full-load torque
- Breakdown Torque:
- 291% of full-load torque
- Ambient Temperature:
- 40°C
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6309-2Z-J/C3, opposite end 6309-2Z-J/C3
- Shaft Type:
- Single
- Material:
- Rolled Steel
