7.5 HP TEFC cooling tower motor rated for 1770 RPM operation. Designed for direct-drive cooling tower fan applications with clockwise rotation. Totally enclosed fan-cooled enclosure provides protection in wet outdoor environments.

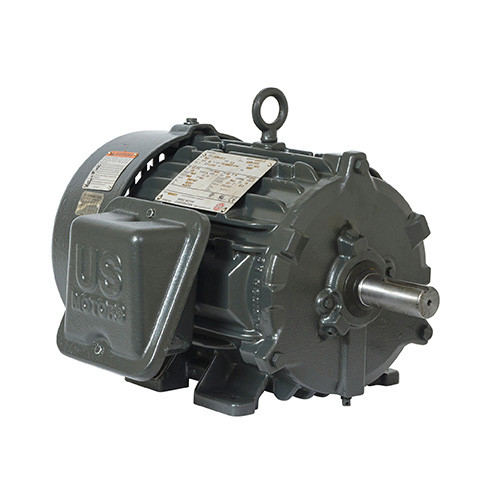

Nidec-US Motors CW7V2H2 Cooling Tower Motor 7.5 HP
Nidec-US Motors
$1,521.95
Write a Review
Write a Review
Nidec-US Motors
Nidec-US Motors CW7V2H2 Cooling Tower Motor 7.5 HP
- SKU:
- CW7V2H2
Specifications
- Product Type:
- Cooling Tower Motor
- Application:
- Commercial/Industrial
- System Type:
- Cooling Tower
- Installation Type:
- OEM Replacement
- Voltage:
- 200V
- Phase:
- Three Phase
- Horsepower:
- 7.5 HP
- RPM:
- 1770 RPM
- Speeds:
- 1
- Frame Size:
- 213
- Mounting Type:
- Horizontal / Footed
- Motor Type:
- Three Phase
- Power (kW):
- 5.6 kW
- Service Factor:
- 1.15
- Service Factor Amps:
- 24.9A
- KVA Code:
- H
- Locked Rotor Torque:
- 207% of full-load torque
- Breakdown Torque:
- 259% of full-load torque
- Ambient Temperature:
- 40°C
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6208-2RS-J/C3, opposite end 6206-2RS-J/C3
- Material:
- Cast Iron
