Premium energy-efficient pool and spa pump motor rated 0.98 HP at 3450 RPM. Single-phase ODP (Open Drip Proof) design with dual-voltage 208-230/115V operation and switchless design. Features 56Y frame, stainless steel shaft, and internal bearing protection suitable for continuous duty in pool/spa applications.

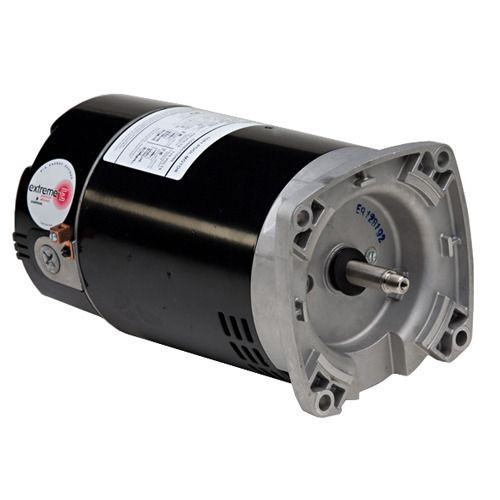

Nidec-US Motors ASB845 Pool Spa Motor 0.98 HP 208-230/115V
Nidec-US Motors
$268.95
In Stock
- SKU:
- ASB845
Specifications
- Product Type:
- Pool Pump Motor
- Subcategory:
- Single-Phase Fractional Horsepower
- Application:
- Residential/Commercial
- System Type:
- Pool Pump, Spa Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 0.98 HP
- RPM:
- 3450 RPM
- Speeds:
- 1
- MFD:
- 50 MFD 370V
- Frame Size:
- 56
- Mounting Type:
- Square Flange
- Fuel Type:
- Electric
- Connection / Joint:
- 1/2-20 UNF-2A
- Material:
- Stainless Steel (shaft)
- Motor Type:
- PSC
- KVA Code:
- M
- Locked Rotor Torque:
- 13.33 oz-ft
- Breakdown Torque:
- 58.12 oz-ft
- Ambient Temperature:
- 50°C
- Run Capacitor:
- 50 MFD 370V
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Single
- Stack Length:
- 1 1/2"
- Total HP:
- 0.95 HP
