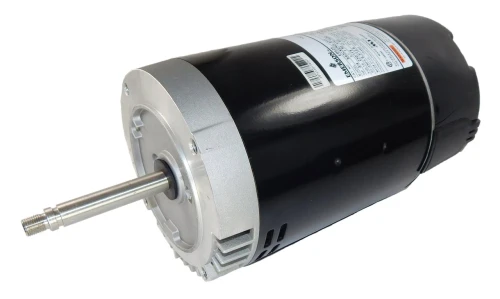

Nidec-US Motors ASB625 Motor 3/4 HP 115/230V 3450 RPM

Nidec-US Motors

$280.95

In Stock — 10+ available

Write a Review
SKU:
ASB625
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $30.55 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Booster Pump Motor
Subcategory:
Single-Speed Pool Pump Motor
Application:
Residential
System Type:
Pool Pump
Installation Type:
OEM Replacement
Voltage:
115/230V
Phase:
Single Phase
Amperage:
12.6/6.3 A
Horsepower:
3/4 HP
RPM:
3450 RPM
Speeds:
1
Frame Size:
56
Mounting Type:
C-Face
Material:
Stainless Steel (shaft)
Motor Type:
PSC
Power (kW):
0.6 kW
Service Factor:
1.5
Service Factor Amps:
6.0/12.0A
KVA Code:
G
Locked Rotor Torque:
14.84 oz-ft
Breakdown Torque:
72.29 oz-ft
Ambient Temperature:
50°C
Bearing Sizes:
shaft end 6203, opposite end 6203
3/4 HP, dual-voltage 115/230V, 3450 RPM single-speed with C-face mount and 1.50 service factor. Features ball bearings, stainless steel shaft, and automatic overload protection.
