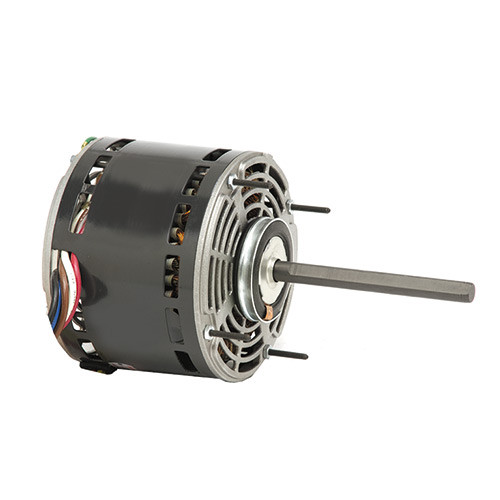

Nidec-US Motors 9036 Unit Heater Motor 1/3 HP 115V

Nidec-US Motors

$270.95

In Stock — 10+ available

Write a Review
SKU:
GPS-100055
Manufacturer Part #
9036
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $26.21 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Voltage:
115V
Phase:
Single Phase
Horsepower:
1/3 HP
RPM:
1075 RPM
Speeds:
1
Frame Size:
48
Product Type:
Unit Heater Motor
Application:
Commercial/Industrial
System Type:
Unit Heater, Furnace
Installation Type:
OEM Replacement
Voltage Class:
Line Voltage
Motor Type:
PSC
Power (kW):
0.3 kW
Service Factor:
1.0
Service Factor Amps:
5.1A
Locked Rotor Torque:
5.657 oz-ft
Breakdown Torque:
39.88 oz-ft
Ambient Temperature:
40°C
Bearings:
Ball / Ball
Single-phase unit heater motor for HVAC systems in warehouses, garages, and factories. 1/3 HP, 115V, 1075 RPM, TEAO enclosure. Reliable, quiet operation for supplemental or primary heating applications.
