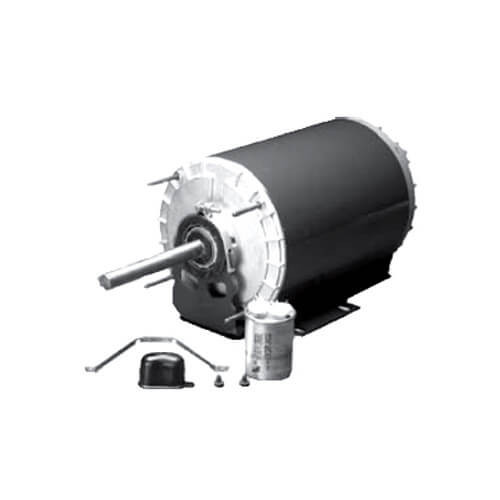

Nidec US Motors 8431 Condenser Fan Motor 1 HP 208-230/460V

Nidec-US Motors

$505.95

In Stock

Write a Review
SKU:
8431
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $35.50 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Condenser Fan Motor
Subcategory:
Direct Drive
Application:
Residential/Commercial
System Type:
Split System, Package Unit, Air Conditioner
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
5.8-5.4/2.7 A
Horsepower:
1 HP
RPM:
1075 RPM
Speeds:
1
Frame Size:
56
Mounting Type:
Stud Mount
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
PSC
Power (kW):
0.8 kW
Service Factor:
1.0
KVA Code:
K
Ambient Temperature:
60°C
Bearings:
Ball / Ball
1 HP condenser fan motor rated for 208-230/460V, 60 Hz, single-phase operation at 1075 RPM. Features OAO (Open Air Over) design with ball bearings, stud mount, and Class B insulation. Direct replacement for OEM condenser units; includes wiring diagram on nameplate.
