US Motors 841CV belt-drive blower motor for HVAC systems. 1/3 HP, single-phase, 115V, 1725 RPM with reversible rotation and automatic thermal overload protection. NEMA 48 frame, open dripproof enclosure, ball bearings. Designed for belted fan and blower applications.

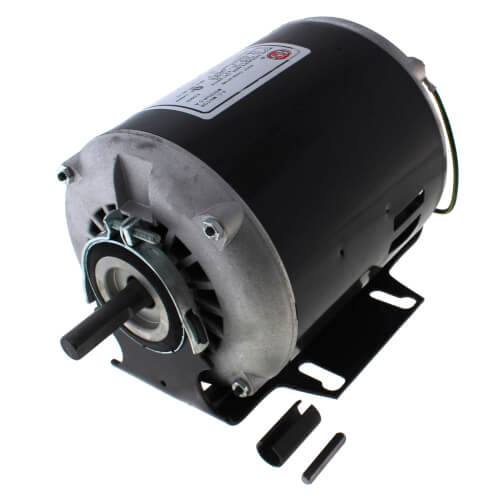

Nidec-US Motors 841CV Blower Motor 1/3 HP 115V 1725 RPM
Nidec-US Motors
$142.95
In Stock — 10+ available
- SKU:
- 841CV
Specifications
- Product Type:
- Belt Drive Blower Motor
- Subcategory:
- HVAC Blower
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 6.4A
- Horsepower:
- 1/3 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Frame Size:
- 48
- Mounting Type:
- Belt Drive
- Fuel Type:
- Electric
- Motor Type:
- Split Phase
- Power (kW):
- 0.3 kW
- Service Factor:
- 1.35
- Service Factor Amps:
- 8.0A
- KVA Code:
- N
- Locked Rotor Torque:
- 19.19 oz-ft
- Breakdown Torque:
- 44.17 oz-ft
- Ambient Temperature:
- 40°C
- Bearing Sizes:
- shaft end 6203, opposite end 6203
