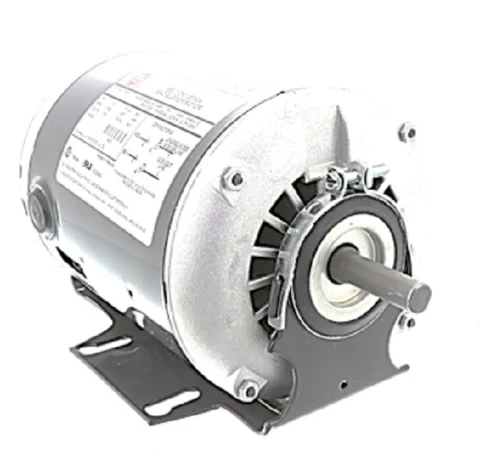

Nidec-US Motors 8200 Furnace Blower Motor 1/2 HP 115V

Nidec-US Motors 8200 Furnace Blower Motor 1/2 HP 115V

Nidec-US Motors

$148.95

In Stock — 10+ available

Write a Review
SKU:
8200
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $27.91 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — call (312) 564-5212 or email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Shipping details

Specifications

Product Type:
Blower Motor
Subcategory:
Furnace/Air Handler Blower
Application:
Residential
System Type:
Furnace, Air Handler
Installation Type:
OEM Replacement
Voltage:
115V
Phase:
Single Phase
Amperage:
8.0A
Horsepower:
1/2 HP
RPM:
1725 RPM
Speeds:
1
Frame Size:
48
Mounting Type:
Resilient Mount
Material:
Rolled Steel
Motor Type:
Split Phase
Power (kW):
0.4 kW
Service Factor:
1.25
Service Factor Amps:
9.0A
KVA Code:
M
Locked Rotor Torque:
27.4 oz-ft
Breakdown Torque:
60.06 oz-ft
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6203, opposite end 6203
Heavy-duty 1/2 HP furnace blower motor for belt-drive applications. Operates at 115V single-phase, 1725 RPM with reversible rotation and 48 NEMA frame. Features Open Dripproof enclosure, dual 6203 ball bearings, automatic thermal overload protection, and 1.25 service factor for reliable performance in furnace and air handler systems.
!
