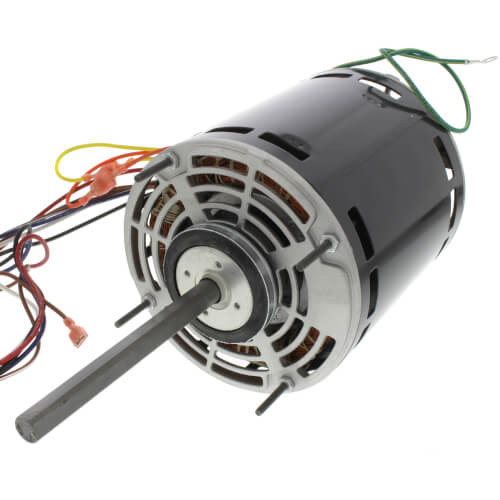

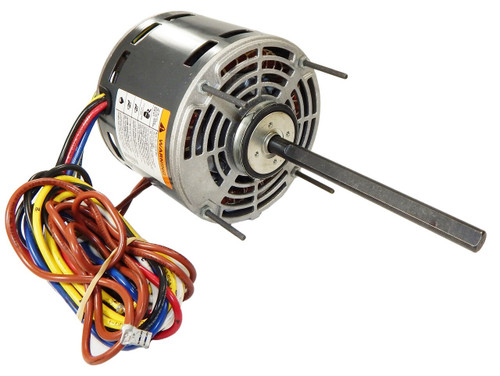

Direct-drive blower motor for residential and light commercial HVAC furnace applications. 1/4 HP, 115V single-phase, 1075 RPM with 4-speed taps for airflow control. Features reversible rotation, open air-over enclosure, and automatic thermal overload protection. Requires 5 MFD 370V capacitor.
Specifications
- Product Type:
- Direct Drive Blower Motor
- Subcategory:
- Furnace Blower
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler
- Installation Type:
- OEM Replacement
- Voltage:
- 115V
- Phase:
- Single Phase
- Amperage:
- 3.8A
- Horsepower:
- 1/4 HP
- RPM:
- 1075 RPM
- Speeds:
- 4
- MFD:
- 5 MFD 370V
- Frame Size:
- 48
- Mounting Type:
- Ring Mount, Stud Mount
- Material:
- Steel
- Motor Type:
- PSC
- Power (kW):
- 0.2 kW
- Service Factor:
- 1.0
- Service Factor Amps:
- 3.8A
- Locked Rotor Torque:
- 6.348 oz-ft
- Breakdown Torque:
- 33.36 oz-ft
- Ambient Temperature:
- 40°C
- Bearings:
- SAB / SAB
