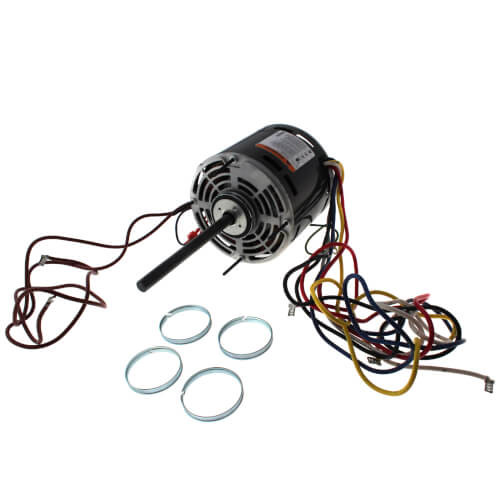

Nidec-US Motors 5461 Direct-Drive Blower Motor 1/6-1/2 HP

Nidec-US Motors 5461 Direct-Drive Blower Motor 1/6-1/2 HP

Nidec-US Motors

$140.95

In Stock — 10+ available

Write a Review
SKU:
5461
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $26.70 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Shipping details

Specifications

Product Type:
Direct-Drive Blower Motor
Subcategory:
PSC Blower Motor
Application:
Residential/Commercial
System Type:
Furnace, Air Handler, Heat Pump, Package Unit
Installation Type:
OEM Replacement
Voltage:
208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
3.6A
Horsepower:
1/2 HP
RPM:
1075 RPM
Speeds:
4
MFD:
10 MFD 370V
Mounting Type:
Resilient Ring Mount, Belly Band, Thru-Bolt, Bracket
Fuel Type:
Electric
Frame Size:
48 Frame
Material:
Rolled Steel
Motor Type:
PSC
Power (kW):
0.4 kW
Service Factor:
1.0
Service Factor Amps:
3.6A
KVA Code:
A
Locked Rotor Torque:
10.75 oz-ft
Breakdown Torque:
53.44 oz-ft
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6201, opposite end 6201
Nidec-US Motors 5461 is a 1/2 HP permanent split capacitor (PSC) direct-drive blower motor rated 208-230V, 1075 RPM, with reversible rotation and 4-speed capability. Includes automatic thermal overload protection and requires a 10 MFD 370V capacitor (sold separately). Ideal for HVAC blower and condenser fan applications.
!
