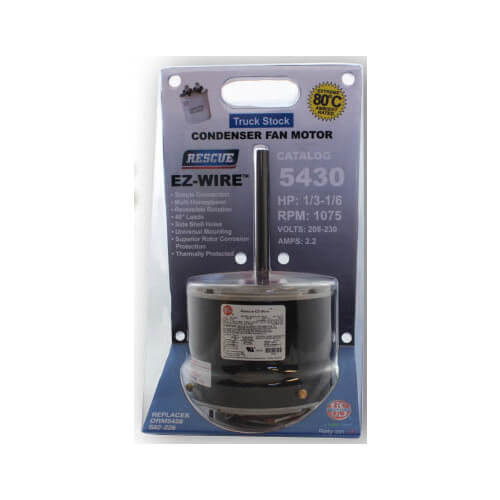

Nidec US Motors 5430 Condenser Fan Motor 1/3 HP 208-230V

Name: Nidec US Motors 5430 Condenser Fan Motor 1/3 HP 208-230V
Brand: Nidec-US Motors
SKU: 5430
Price: 122.95 USD
Availability: InStock

Nidec-US Motors

$122.95

In Stock — 10+ available

Write a Review

SKU:: 5430
UPC:

in stock

Quantity:

Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $38.80 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — call (312) 564-5212 or email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Shipping details

Specifications

Product Type:: Condenser Fan Motor
Subcategory:: PSC Permanent Split Capacitor
Application:: Residential/Commercial
System Type:: Split System, Package Unit, Condenser
Installation Type:: OEM Replacement
Voltage:: 208-230V
Phase:: Single Phase
Amperage:: 2.2A
Horsepower:: 1/3 HP
RPM:: 1075 RPM
Speeds:: 1
Frame Size:: 48
Blade Diameter:: 5.6"
Max RPM:: 1075 RPM

Description

Permanent Split Capacitor (PSC) condenser fan motor rated 1/3 HP at 208-230V, 1075 RPM, single-phase. TEAO enclosure with ball bearings for durability in high-temperature applications. Reversible rotation via quick-connect terminals. 48" leads for easy installation into condensing units.
