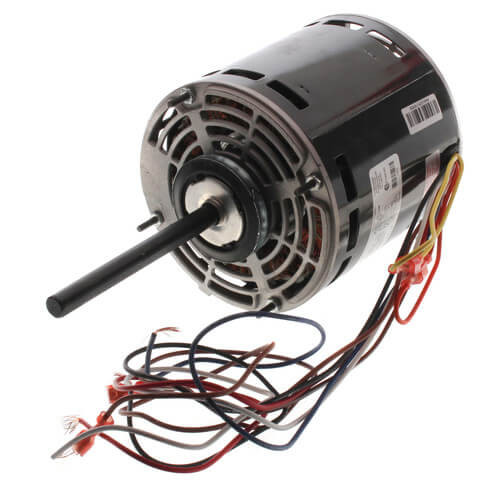

Nidec-US Motors 1973 Blower Motor 1/2 HP 208-230V 1075 RPM

Nidec-US Motors 1973 Blower Motor 1/2 HP 208-230V 1075 RPM

Nidec-US Motors

$140.95

In Stock — 10+ available

Write a Review
SKU:
1973
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $27.25 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — call (312) 564-5212 or request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Shipping details

Specifications

Product Type:
Blower Motor
Subcategory:
Furnace/Air Handler
Application:
Residential
System Type:
Furnace, Air Handler
Installation Type:
OEM Replacement
Voltage:
208-230V
Phase:
Single Phase
Amperage:
2.9A
Horsepower:
1/2 HP
RPM:
1075 RPM
Speeds:
3
MFD:
10 MFD 370V
Frame Size:
48
Mounting Type:
Hub/Stud/Belly Band
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
PSC
Power (kW):
0.4 kW
Service Factor:
1.0
Locked Rotor Torque:
15.88 oz-ft
Breakdown Torque:
58.75 oz-ft
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6201, opposite end 6201
1/2 HP permanent split capacitor blower motor rated 208-230V, 1075 RPM with 3-speed operation. Features reversible rotation, 48Y NEMA frame, open air-over enclosure, and self-aligning sleeve bearings. Requires 10 MFD 370V capacitor (sold separately). Suitable for residential furnace and air handler applications.
!
