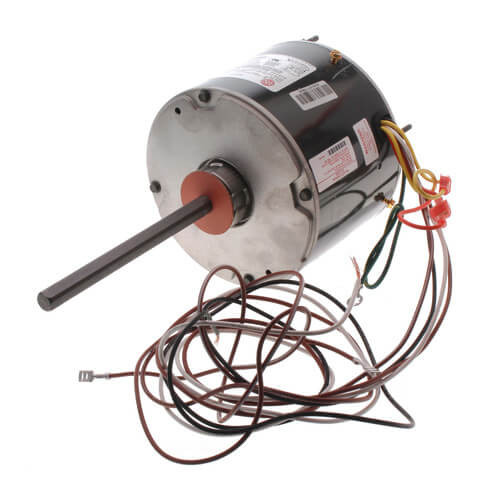

Nidec US Motors 1874H Condenser Fan Motor 1/4 HP 825 RPM 208-230V

Nidec-US Motors

$139.95

In Stock — 10+ available

Write a Review
SKU:
1874H
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $24.50 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Condenser Fan Motor
Subcategory:
Direct Drive
Application:
Residential/Commercial
System Type:
Split System, Package Unit, Air Conditioner
Installation Type:
OEM Replacement
Voltage:
208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
2.1A
Horsepower:
1/4 HP
RPM:
825 RPM
Speeds:
1
Frame Size:
48
Mounting Type:
Stud Mount
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
PSC
Power (kW):
0.2 kW
Service Factor:
1.0
Service Factor Amps:
2.1A
Locked Rotor Torque:
6.11 oz-ft
Breakdown Torque:
39.8 oz-ft
Ambient Temperature:
70°C
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6201, opposite end 6201
1/4 HP direct-drive condenser fan motor for HVAC systems, rated 208-230V single-phase at 825 RPM. TEAO enclosure with ball bearings and Class F insulation. Reversible rotation with 1/2" diameter x 4.5" flat shaft. Includes automatic overload protection.
