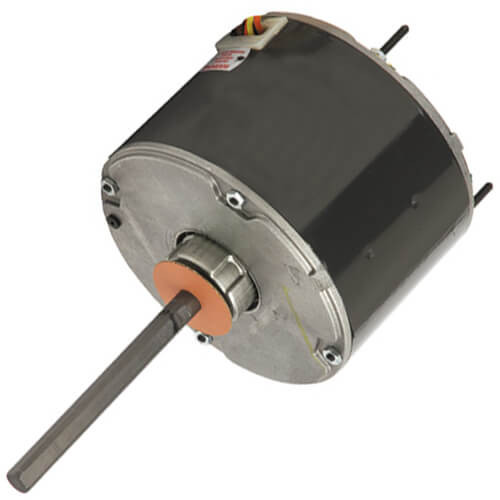

Nidec US Motors 1870 Condenser Fan Motor 0.5 HP 208-230V

Nidec-US Motors

$182.95

In Stock — 10+ available

Write a Review
SKU:
1870
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $29.86 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Condenser Fan Motor
Subcategory:
Single-Phase HVAC
Application:
Residential/Commercial
System Type:
Split System, Package Unit
Installation Type:
OEM Replacement
Voltage:
208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
1.5A
Horsepower:
0.5 HP
RPM:
825 RPM
Speeds:
1
MFD:
5.0 MFD 370V
Mounting Type:
Stud Mount
Temperature Range:
32°F to 140°F
Fuel Type:
Electric
Frame Size:
48
Motor Type:
PSC
Power (kW):
0.4 kW
Service Factor:
1.0
KVA Code:
C
Locked Rotor Torque:
12.51 oz-ft
Breakdown Torque:
79.77 oz-ft
Ambient Temperature:
60°C
Bearings:
SAB / SAB
Bearing Sizes:
shaft end 6203, opposite end 6203
Service Factor Amps:
2.8A
Nidec US Motors 1870 condenser fan motor, 0.5 HP, single-phase, 208-230V, 825 RPM. TEAO enclosure with stud mount, suitable for residential and commercial condenser units. Includes 5.0 MFD capacitor rating, Class B insulation, and automatic thermal overload protection.
