US Motors 1814P is a 1.5 HP general-purpose motor rated for 208-230/460V dual-voltage operation at 1725/1425 RPM (60/50 Hz). Features NEMA 56H frame, open drip-proof enclosure, Class B insulation, automatic reset thermal overload protection, and reversible rotation. Designed for commercial HVAC blower drives, fans, and pumps.

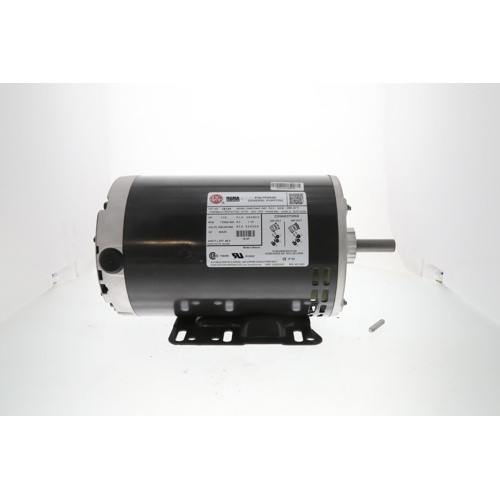

Nidec US Motors 1814P 1.5 HP Motor 208-230/460V 56H
Nidec-US Motors
$615.95
In Stock — 10+ available
Write a Review
Write a Review
Nidec-US Motors
Nidec US Motors 1814P 1.5 HP Motor 208-230/460V 56H
- SKU:
- 1814P
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Three-Phase Belt-Drive Blower Motor
- Application:
- Commercial
- System Type:
- Air Handler, Blower, Fan Drive, Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 4.8-4.8/2.4 A
- Horsepower:
- 1.5 HP
- RPM:
- 1725/1425 RPM
- Speeds:
- 1
- Frame Size:
- 56H Frame
- Mounting Type:
- Rigid Base
- Fuel Type:
- Electric
