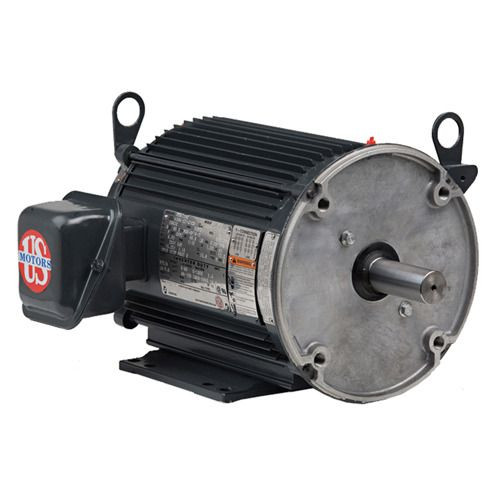

Nidec-US Motors 7.5 HP three-phase variable speed motor rated 230/460V, 1775 RPM. TENV (totally enclosed non-ventilated) enclosure suitable for demanding HVAC and industrial applications. Designed for precision speed control in blower and compressor duty.
Specifications
- Product Type:
- Variable Speed Motor
- Subcategory:
- Three-Phase Industrial
- Application:
- Commercial/Industrial
- System Type:
- Blower, Compressor, Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 7.5 HP
- RPM:
- 1775 RPM
- Speeds:
- 1
- Frame Size:
- 213
- Mounting Type:
- C-Face / Footed
- Motor Type:
- Three Phase
- Power (kW):
- 5.6 kW
- Service Factor:
- 1.0
- KVA Code:
- L
- Locked Rotor Torque:
- 349% of full-load torque
- Breakdown Torque:
- 445% of full-load torque
- Ambient Temperature:
- 40°C
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6208-2Z-J/C3, opposite end 6206-2Z-J/C3
- Shaft Type:
- Single
- Material:
- Aluminum
