US Motors/Nidec close coupled pump motor designed for centrifugal pump applications where the impeller mounts directly on the motor shaft. 1 HP, 3-phase, 208-230/460V, 1800 RPM (synchronous), TEFC enclosure with 1.25 service factor and Class F insulation. NEMA Premium efficient with continuous duty rating and ball bearings.

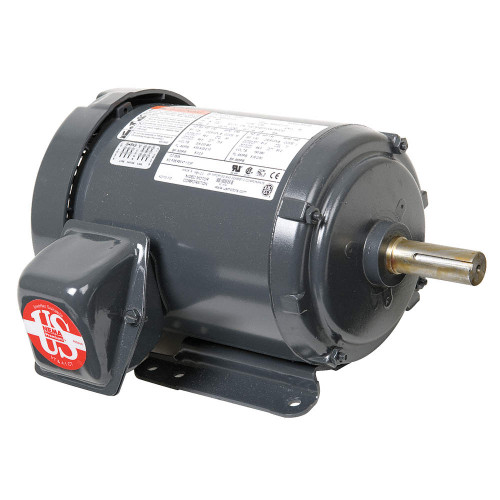

Nidec UJ1P2DM Close Coupled Pump Motor 1 HP 3-Phase TEFC
Nidec-US Motors
$392.95
In Stock — 10+ available
- SKU:
- UJ1P2DM
Specifications
- Product Type:
- Close Coupled Pump Motor
- Subcategory:
- Centrifugal Pump Motor
- Application:
- Commercial/Industrial
- System Type:
- Pump System
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 3.1-3.0/1.5 A
- Horsepower:
- 1 HP
- RPM:
- 1765 RPM
- Speeds:
- 1
- Frame Size:
- 143
- Mounting Type:
- Foot Mount
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Motor Type:
- Three Phase
- Power (kW):
- 0.7 kW
- Service Factor:
- 1.25
- Service Factor Amps:
- 3.6/1.8A
- KVA Code:
- M
- Locked Rotor Torque:
- 354% of full-load torque
- Breakdown Torque:
- 460% of full-load torque
- Ambient Temperature:
- 40°C
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6206-2Z-J/C3, opposite end 6203-2Z-J/C3
- Shaft Type:
- Single
- C Dimension:
- 15.3"
