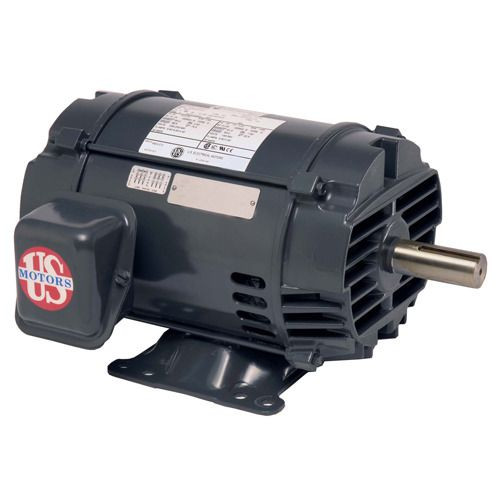

Nidec-US Motors 5 HP three-phase general-purpose motor rated for 200V operation at 1760 RPM. TEFC (totally enclosed fan-cooled) enclosure provides protection in demanding industrial and HVAC applications. Suitable for pump drives, compressors, and other continuous-duty loads.
Specifications
- Product Type:
- General Purpose Motor
- Application:
- Commercial/Industrial
- Installation Type:
- OEM Replacement
- Voltage:
- 200V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 5 HP
- RPM:
- 1760 RPM
- Speeds:
- 1
- Frame Size:
- 184
- Mounting Type:
- Horizontal / Footed
- Motor Type:
- Three Phase
- Power (kW):
- 3.7 kW
- Service Factor:
- 1.25
- Service Factor Amps:
- 18.1A
- KVA Code:
- J
- Locked Rotor Torque:
- 225% of full-load torque
- Breakdown Torque:
- 317% of full-load torque
- Ambient Temperature:
- 40°C
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6206-2Z-J/C3, opposite end 6205-2Z-J/C3
- Shaft Type:
- Single
- Material:
- Aluminum
