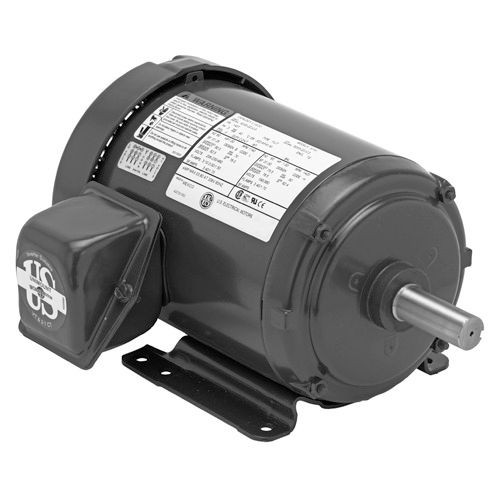

Nidec-US Motors 0.75 HP three-phase general-purpose motor rated 208-230/460V, 1140 RPM. TEFC (totally enclosed fan-cooled) enclosure suitable for industrial and commercial HVAC applications. Reliable OEM replacement for air handlers, compressors, and auxiliary equipment.
Nidec U34S3ACR General Purpose Motor 0.75 HP 3-Phase 1140 RPM
Nidec-US Motors
$370.95
In Stock
- SKU:
- U34S3ACR
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Three-Phase Industrial Motor
- Application:
- Commercial/Industrial
- System Type:
- Air Handler, Compressor, Auxiliary Equipment
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 0.75 HP
- RPM:
- 1140 RPM
- Speeds:
- 1
- Frame Size:
- 56
- Motor Type:
- Three Phase
- Power (kW):
- 0.6 kW
- Service Factor:
- 1.15
- KVA Code:
- L
- Locked Rotor Torque:
- 154.1 oz-ft
- Breakdown Torque:
- 227.5 oz-ft
- Ambient Temperature:
- 40°C
- Bearing Sizes:
- shaft end 6203, opposite end 6203
