Nidec-US Motors U20V2B is a 20 HP, 3-phase general-purpose motor with TEFC enclosure and rigid base mount. Rated 230/460V AC, 1770 RPM, reversible rotation. 256T frame size with aluminum construction. Suitable for industrial and commercial HVAC applications including compressors, pumps, and fans.

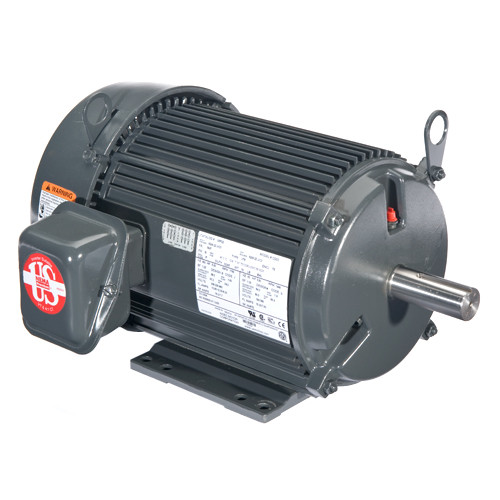

Nidec U20V2B General Purpose Motor 20 HP 230/460V 3-Phase
Nidec-US Motors
$1,852.95
Write a Review
Write a Review
Nidec-US Motors
Nidec U20V2B General Purpose Motor 20 HP 230/460V 3-Phase
- SKU:
- U20V2B
Specifications
- Product Type:
- General Purpose Motor
- Application:
- Commercial/Industrial
- System Type:
- Compressor, Pump, Fan, Rooftop Unit, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 20 HP
- RPM:
- 1770 RPM
- Speeds:
- 1
- Frame Size:
- 256T Frame
- Mounting Type:
- Rigid Base Mount
- Fuel Type:
- Electric
- Material:
- Aluminum
