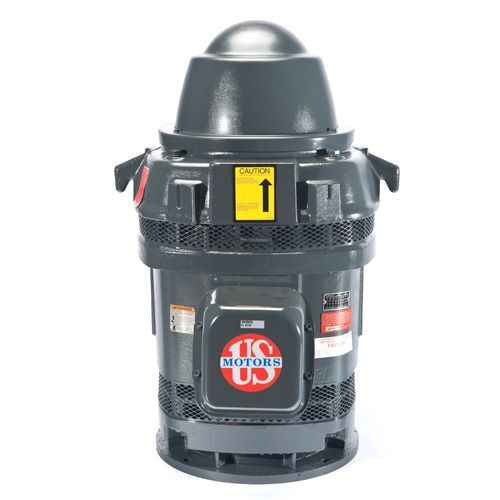

US Motors/Nidec 50 HP vertical hollow shaft motor designed for turbine pump applications. Three-phase, 460V, 1800 RPM (1780 base), 326TP frame, Weather Protected Type I (WPI) enclosure with 94.5% full-load efficiency. Cast iron construction with high thrust capacity (5700 lbs down thrust) and continuous duty rating.
Specifications
- Product Type:
- Vertical Hollow Shaft Motor
- Subcategory:
- Pump Motor
- Application:
- Commercial/Industrial
- System Type:
- Pump System, Turbine Pump, Vertical Turbine
- Installation Type:
- OEM Replacement
- Voltage:
- 460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 57 A
- Horsepower:
- 50 HP
- RPM:
- 1785 RPM
- Speeds:
- 1
- Frame Size:
- 326
- Mounting Type:
- Vertical Mount
- Fuel Type:
- Electric
- Material:
- Cast Iron
- Motor Type:
- Three Phase
- Power (kW):
- 37.3 kW
- Service Factor:
- 1.15
- Service Factor Amps:
- 68A
- KVA Code:
- G
- Locked Rotor Torque:
- 217% of full-load torque
- Breakdown Torque:
- 249% of full-load torque
- Ambient Temperature:
- 40°C
- Bearing Sizes:
- shaft end 6211-J
