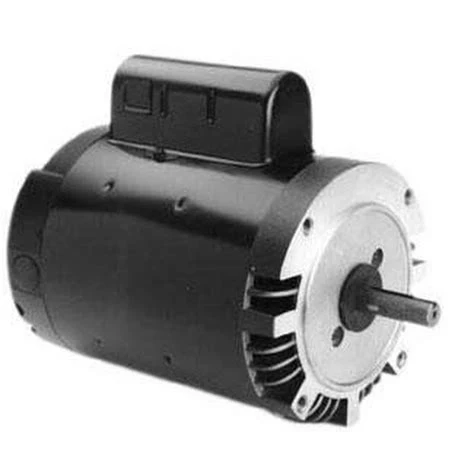

Nidec EU1502B Commercial Pump Motor 1.5 HP 3450 RPM

Nidec-US Motors

$508.95

In Stock

Write a Review
SKU:
EU1502B
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $37.04 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Commercial Pump Motor
Subcategory:
Single-Phase Capacitor-Start
Application:
Commercial/Industrial
System Type:
Pump System
Installation Type:
OEM Replacement
Voltage:
115/208-230V, 110/220V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
18.2/9.2-9.1 A
Horsepower:
1.5 HP
RPM:
3450/2850 RPM
Speeds:
1
Frame Size:
56
Mounting Type:
C-Face
Fuel Type:
Electric
Motor Type:
Capacitor Start
Power (kW):
1.1 kW
KVA Code:
K
Locked Rotor Torque:
50.05 oz-ft
Breakdown Torque:
109.7 oz-ft
Ambient Temperature:
40°C
Start Capacitor:
238 MFD
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6203, opposite end 6203
Nidec-US Motors EU1502B is a 1.5 HP single-phase commercial pump motor rated 115/208-230V and 110/220V, running at 3450 RPM with ODP enclosure. Designed for pump and industrial applications with capacitor-start design and 1.3 service factor. Includes automatic overload protection and ball bearings.
