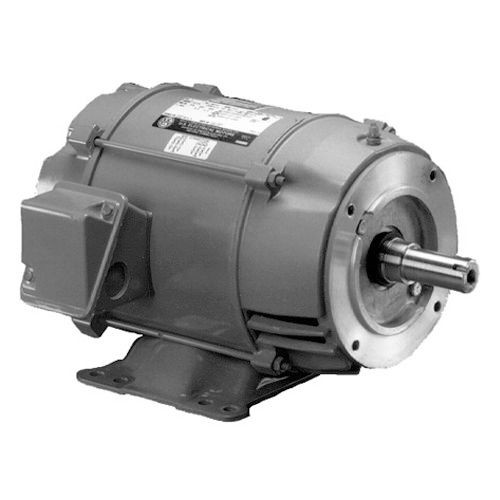

Nidec EJM302B 3 HP single-phase close-coupled pump motor rated 208-230V, 60 Hz, 3600 RPM. Features NEMA 182JM frame, ODP enclosure, reversible rotation, and C-face mounting for direct pump coupling. Class B insulation with 1.15 service factor. Ideal for residential and light commercial pump applications.
Specifications
- Product Type:
- Close-Coupled Pump Motor
- Subcategory:
- Single-Phase Pump Motor
- Application:
- Residential/Commercial
- System Type:
- Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230V
- Phase:
- Single Phase
- Amperage:
- 14.0-13.2 A
- Horsepower:
- 3 HP
- RPM:
- 3450 RPM
- Speeds:
- 1
- Frame Size:
- 182
- Mounting Type:
- C-Face
- Material:
- Rolled Steel
- Motor Type:
- Capacitor Start
- Power (kW):
- 2.2 kW
- Service Factor:
- 1.15
- KVA Code:
- F
- Locked Rotor Torque:
- 146 oz-ft
- Breakdown Torque:
- 179 oz-ft
- Ambient Temperature:
- 40°C
- Start Capacitor:
- 208 MFD
- Bearing Sizes:
- shaft end 6203, opposite end 6207
