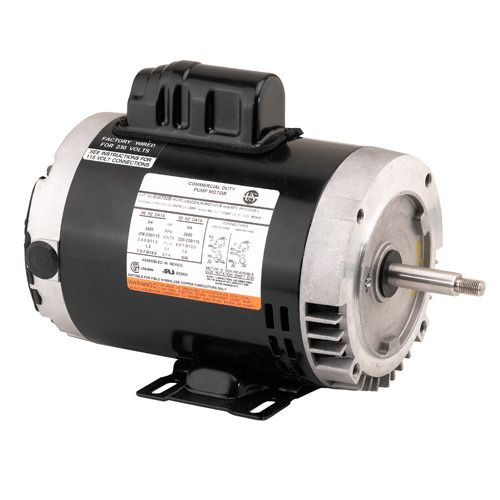

Nidec-US Motors 3 HP single-phase general-purpose motor rated 208-230V at 3450 RPM. Open drip-proof (ODP) enclosure suitable for indoor, non-hazardous environments. Ideal for pump drives, fan motors, and light industrial applications.
Specifications
- Product Type:
- General Purpose Motor
- Application:
- Residential/Commercial
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 3 HP
- RPM:
- 3450 RPM
- Speeds:
- 2
- Fuel Type:
- Electric
- Frame Size:
- 56
- Mounting Type:
- C-Face / Footless
- Motor Type:
- Capacitor Start
- Power (kW):
- 2.2 kW
- Service Factor:
- 1.15
- Locked Rotor Torque:
- 144.9 oz-ft
- Breakdown Torque:
- 176.6 oz-ft
- Ambient Temperature:
- 40°C
- Start Capacitor:
- 208 MFD
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Single
- Material:
- Rolled Steel
