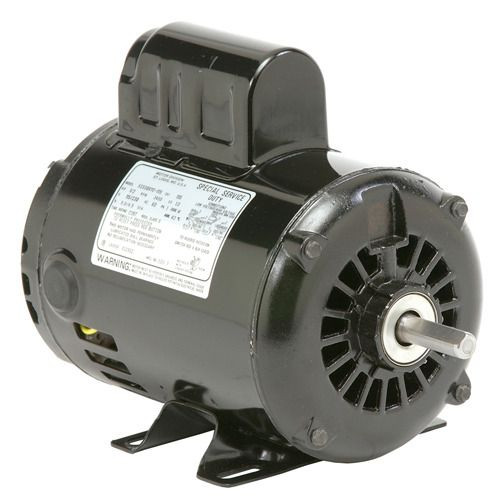

Nidec EC1502 General Purpose Motor 1.5 HP 115/208-230V

Nidec-US Motors

$406.95

In Stock

Write a Review
SKU:
EC1502
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $36.01 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
General Purpose Motor
Application:
Residential/Commercial
System Type:
Furnace, Air Handler, Blower
Installation Type:
OEM Replacement
Voltage:
115/208-230V, 110/220V
Voltage Class:
Line Voltage
Phase:
Single Phase
Horsepower:
1.5 HP
RPM:
3450/2850 RPM
Speeds:
1
Fuel Type:
Electric
Frame Size:
56
Motor Type:
Capacitor Start
Power (kW):
1.1 kW
KVA Code:
K
Locked Rotor Torque:
50.05 oz-ft
Breakdown Torque:
109.7 oz-ft
Ambient Temperature:
40°C
Start Capacitor:
238 MFD
Bearing Sizes:
shaft end 6203, opposite end 6203
Mounting Type:
C-Face
Bearings:
Ball / Ball
Shaft Type:
Single
Material:
Rolled Steel
Nidec-US Motors EC1502 general-purpose motor delivers 1.5 HP at 3450 RPM. Single-phase, open drip-proof (ODP) enclosure rated for 115V or 208-230V operation. Suitable for HVAC blowers, pumps, and light industrial applications requiring reliable continuous-duty performance.
